Description
High-Performance Servo:
The EMAX ES09MD HV is a high-performance digital servo with a metal gear train, designed for RC applications that demand precision and durability. It’s a good choice for RC cars, trucks, robots, and boats.
High Voltage Compatibility:
It can operate on voltages between 5V and 8.4V (2s LiPo), allowing for more power and speed compared to servos limited to lower voltages.
Digital Circuitry:
The digital circuitry offers precise control and faster response times compared to analog servos.
Features:
- Digital circuitry
- High voltage compatibility (5V to 8.4V)
- Metal gear train
- Dual bearings
Specifications:
- Servo Type: Digital, Standard
- Gear Type: Metal
- Operating Voltage: 5V – 8.4V (2s LiPo Compatible)
- Stall Torque: 3.1 kg-cm (43.4 oz-in) at 7.4V
- Operating Speed: 0.12sec/60 Degrees at 7.4V
- Holding Power: 908Degreessec at 7.4V
- Neutral Position: 1500Degreessec
- Operating Temperature: -10 Degrees to 50 Degrees
- Weight: 13.5g (0.47oz)
- Dimensions: 44.95 x 21.7 x 17.2mm (1.77 x 0.85 x 0.68 in)
- Output Connector: JR female
Package Contents:

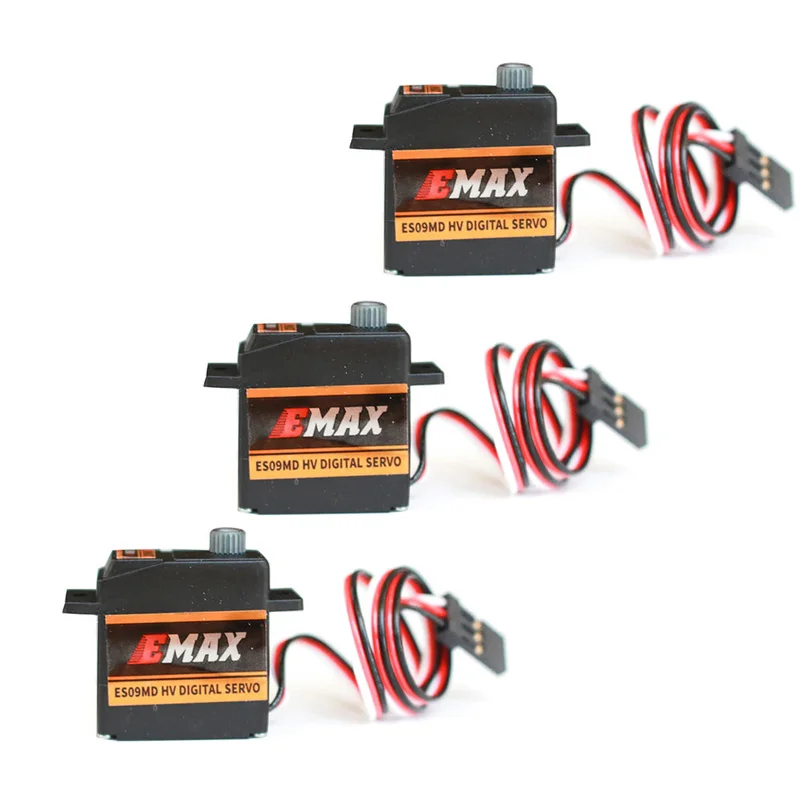

- 3x Emax ES09MD HV High Voltage Servo
