Description

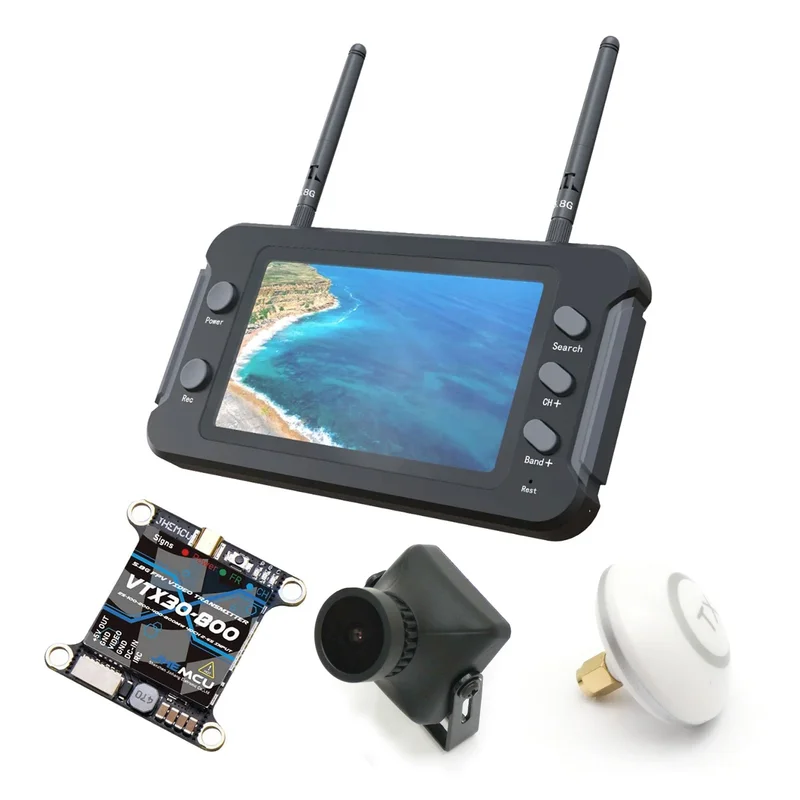

This kit comes with all necessary items to get setup with a live, recorded video feed for your drone or RC model. The FPV monitor featuring bright sunlight viewable display, built in rechargeable battery, auto-scan function and more. The camera and video transmitteris a modern micro 1200TVL Sony CCD HD model, designed with the needs of drone pilots and RC enthusiasts in mind.
5.8GHz Diversity FPV Monitor Specifications:
- Receiver Frequency: 5.8 GHz
- Dual Antenna Configuration: Diversity Receiver Antennas Supported
- Battery Capacity: Built-in 1200mAh Battery
- Battery Life: Approximately 3 Hours of Continuous Usage
- Voltage Compatibility: Supports Wide Voltage Charging (5-23V)
- Backup Power Sources: Compatible with 5V Mobile Power, 2S (7.4V), and 3S (11.1V) Batteries
- DVR Functionality: Record Video Content On-The-Go
- Display Size: 4.3 Inches
- Display Resolution: 800 x 480
- Aspect Ratio: 16:9 Widescreen
- Screen Type: IPS (In-Plane Switching) Screen
- Anti-Glare Design: Delicate Picture Quality with Reduced Outdoor Reflection
- Automatic Search: One-Click Automatic Frequency Search
- User-Friendly Design: Intuitive Interface for Enjoyable Flying Experience
Video Transmitter Specifications:
- Frequency: 5.8G 48CH
- Transmitting Power: 25mW/200mW/600mW/OFF
- Power supply: DC 6-25V (2-6S)
- Supply current12V: 140mA@25mW /250mA@200mW /300mA@600mW
- Power output: DC 5V (800mA max)
- Antenna impedance: 50 ohm
- Antenna connector: MMCX Female( RP-SMA Male Pigtail)
- Weight: 8 g
- Dimension: 36*36*7.65 mm
- Mounting Hole: 30.5mmx30.5mm
1200TVL Camera Specifications:
- Horizontal resolution: 1200 Horizontal TV lines
- Minimum Illumination: 0.01 Lux / F1.2
- Auto electronic shutter: NTSC: 1/60~ 1/100,000
- S/N ratio: More than 50 dB
- Lens: 2.1mm
- Signal System: NTSC
- Day/Night: Auto / Color/ B&W
- Back Light Compensation (BLC): Yes
- Auto Gain Control (AGC): Auto
- Video Output: 1Vp-p / 75ohms
- Power Supply: 12V DC
- Dimensions: 25x25x30mm
- Net Weight: 12g
Package Contents:
- 1x 5.8GHz Diversity FPV Monitor w/ Internal Battery
- 1x 5.8GHz 800mW Video Transmitter
- 1xTransmitting Antenna
- 2x Receiving Antennas
- 1x 1200TVL Camera w/ Swivel Mount
