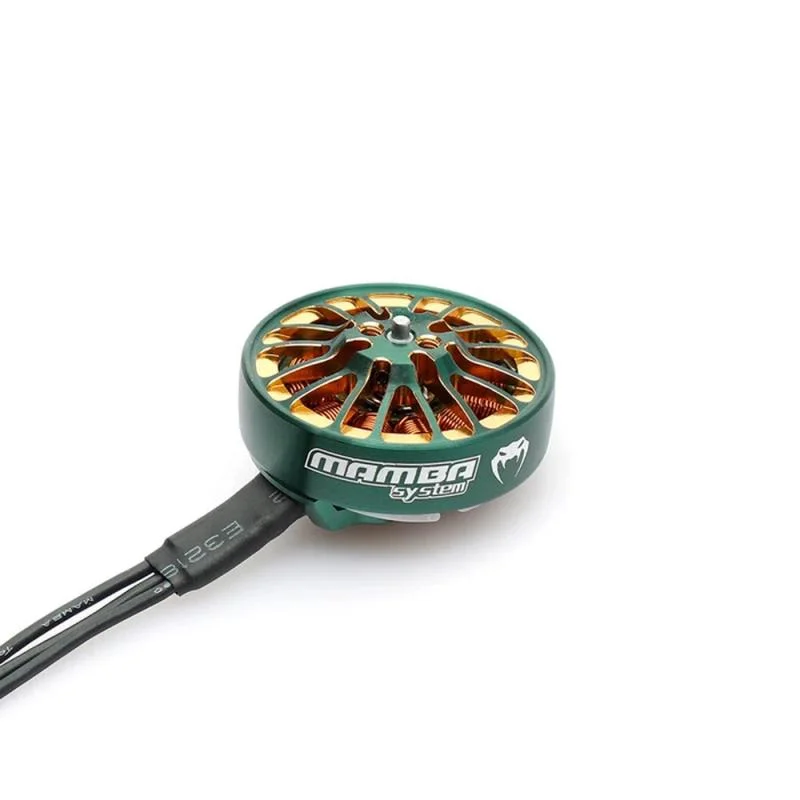

DIATONE MAMBA TOKA 2004 2900KV RACING MOTOR

Description

Mamba Toka 2004 for your cinewhoops!

SPECIFICATIONS:

• Overall Dimension:Φ26.2×15.3mm
• prop mounting shaft diameter:1.5mm
• Installation hole position:12×12mm，M2
• Prop: 3.5inch~5inch
• Bearing：7*3*3
• Shaft Diameter:3.0mm
• Lead Wire Size：24AWG×150mm
• slots/poles:12N14P
• Magnet Wire: 240℃ Enameled Wire
• Stator Diamter：20mm
• Stator Height:4mm
• Rated Voltage:3~4S (12.6V~16.8V)
• Peak Current: 31.63A
• ldle Current：10V/0.9~1.5A
• Maximum Power: 418.1W
• Internal Resistance：90Ω
• Weight: 16.3g

INCLUDES:

• 1 x Mamba Toka 2004 Brushless Motor
