Furitek VoltEagle 1/10 Drift Combo – RED Edition (Plug & Play Brushless Sensored System for Traxxas 4-Tec Drift)

Description

🖤
Furitek VoltEagle 1/10 Drift Combo – RED Edition

(Plug & Play Brushless Sensored System for Traxxas 4-Tec Drift)

Unleash the full drift potential of your Traxxas 4-Tec with the
Furitek VoltEagle Drift Combo – Midnight Edition.

This high-performance
Plug & Play combo combines the ultra-smooth
Furitek EagleTech sensored brushless ESC with the powerful and responsive
Voltmaster 3650 10.5T motor, delivering instant throttle control, precise modulation, and brutal low-end torque — all tuned for drift.

Engineered as a direct drop-in upgrade for the
Traxxas 4-Tec Drift, this combo transforms your stock setup into a
competition-ready drift machine, capable of consistent throttle balance, long controlled slides, and improved reliability under stress.

Whether you’re running tight technical tracks or full-throttle sweepers, the
VoltEagle system brings the finesse, smoothness, and raw power needed to dominate.

📐 Furitek EagleTech
 Specifications :

📌 
Application: 1/10 Scale On-Road / Drift

📌 
ESC Type: Sensored Brushless

📌 
Input Voltage: 2S LiPo

📌 
BEC Output: Adjustable 6.0V–7.4V / Peak 10A

📌 
Continuous Current: 160A

📌 
Peak Current: 800A

📌 
Motor Limit: Down to 6.0T

📌 
Wireless Tuning: Built-in WiFi (real-time tuning via mobile app)

📌 
Cooling System: High-performance cooling fan + aluminum heatsink

📌 
Color: RED

📌 
Dimensions: 34.6 x 33.6 x 21.3 mm (1.36 x 1.32 x 0.84 inch)

📌 
Weight: 83.8g (3 oz)

🏎 Furitek Voltmaster FEATURES:

✅
💨 Aerodynamic Cooling System – Precision-designed ventilation slots create a
turbo airflow effect, ensuring
maximum heat dissipation even at high RPMs.

✅
🔩 Quick-Swap Connector System – Pre-welded
gold-plated bullet connectors for
instant plug & play motor swaps without soldering hassles.

✅
🚀 Ultra-Responsive 2-Pole Rotor –
High-temperature explosion-proof construction (rated
200°C) delivers
insanely smooth throttle control and maximum drift stability.

✅
💎 7075-T6 Aluminum Alloy Housing – Machined from
premium-grade aerospace aluminum, ensuring
lightweight strength and extreme heat dissipation.

✅
🔧 M.F.C.S (Magnetic Force Control System) – Fine-tune your
torque characteristics without changing rotors—
next-level customization for drift perfection.

✅
🔥 94% Energy Efficiency Conversion – Built with an
ultra-thin 0.2mm silicon steel stator, optimizing power output and battery life.

✅
🛠 Dual Hall Sensor Ports – Versatile chassis wiring options for
seamless ESC integration and maximum tuning flexibility.

✅
⚙️ Oversized Front Bearings –
High-load capacity bearings ensure
smooth rotation, durability, and extended motor lifespan.

🔍
Furitek Voltmaster
SPECIFICATIONS

📌
Application: 1/10 Scale On-Road / Drift

📌
Motor Type: Sensored Brushless

📌
Turns: 10.5T

📌
Input Voltage: 2S LiPo / 4-6S NiMH

📌
Efficiency: 94%

📌
Max Operating Temperature: 200°C

📌
Housing Material: CNC Machined Anodized 7075 Aluminum

🔧

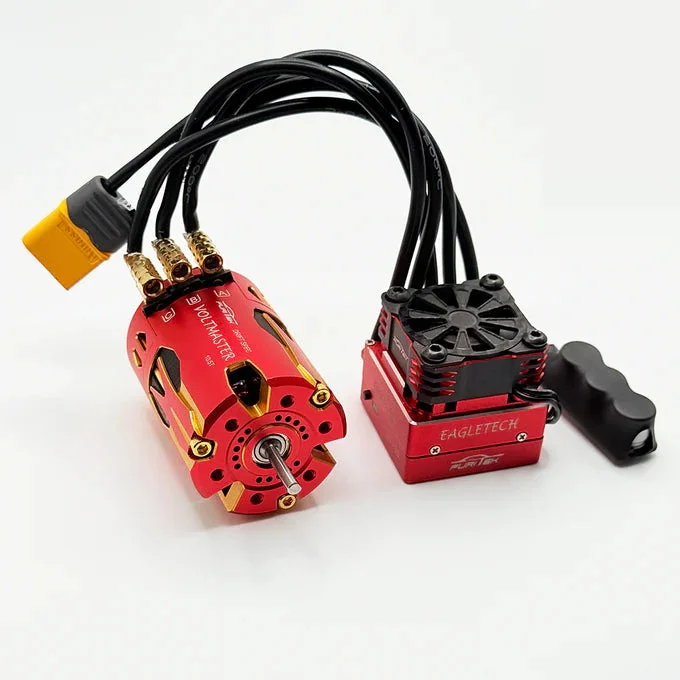

What’s Included
:

• Furitek EagleTech 1/10 Sensored Brushless ESC (with advanced throttle tuning & boost control)

• Furitek Voltmaster 3650 10.5T Sensored Brushless Motor (built for torque, speed, and drift-specific response)

• Pre-wired plug & play connectors for easy install with Traxxas 4-Tec

• Adapter XT60 to Traxxas Battery

💥 Key Benefits:

• True Plug & Play: No soldering, no hassle — ready for 4-Tec Drift out of the box

• Works with Stock Radio & Battery: Fully compatible with your original Traxxas transmitter and battery setup

• Sensored Precision: Ultra-smooth throttle control with zero cogging

• Massive Upgrade: Dramatically better response, torque, and control over stock setup

• Built for Drift: Designed specifically for low-speed modulation and high-angle slide consistency

• Reliable Performance: Efficient heat management and optimized boost/turbo features

Ready to leave the stock performance behind?

Slide into the next level with the VoltEagle Drift Combo.

🚨 Important Reminder for Slidetech Esc Users 🚨

Please double-check power connector polarity before soldering!
Incorrect polarity can cause permanent damage to your Slidetech system and will NOT be covered under warranty.

✅ Tips:

• Always verify + and – before connecting power

• Use proper tools and take your time to avoid mistakes

Your attention to detail can save your electronics! 🔧⚠️
