Description

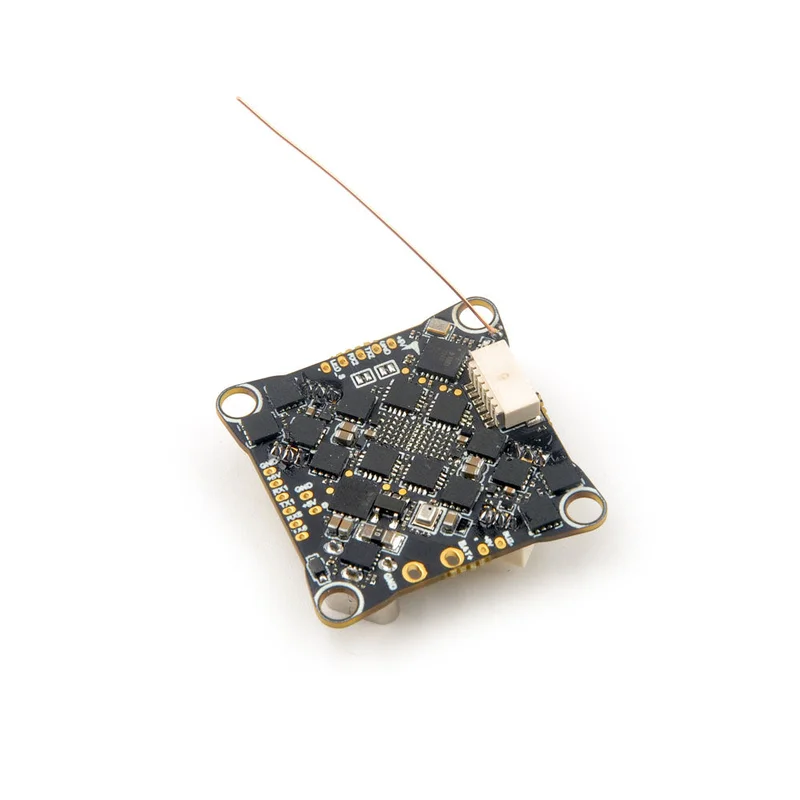

A flight controller with a built-in Serial ELRS receiver and 4-IN-1 Blheli_S 12A ESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout, and supports 1-2S Lipo/LiHV lithium batteries, very Suitable for Digital HD Tinywhoop/Cinewhoop/Toothpick and other small FPV drones. The flight controller uses the F405 chip, supports Betaflight/INAV firmware, has 3 sets of complete UARTs available, and integrates a BMP280 barometer and 8Mbp blackbox, which greatly enhances the playability of the flight controller.
Overall Specifications:
- Item Name: CrazyF405HD ELRS 1-2S AIO Flight controller
- Mount size: 25.5mmx25.5mm
- Weight: 4.8g without power lead wire
- Firmware target: BetaflightF4
- Support 1-2s Lipo/LiHV battery
Flight Controller Specifications:
- MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
- GYRO Sensor: BMI270 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Built-in 12A(each) Blheli_S 4in1 ESC
- Built-in Serial ExpressLRS 2.4GBuilt-in BMP280 Barometer
- Built-in 8MBp blackbox
- Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470
Onboard 4-in-1 ESC Specifications:
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Support BLHeli_S Bluejay firmware
- Factory firmware: Bluejay ESC V0.19Firmware target: Z-H-30
- Default protocol: DSHOT300
- When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard 2.4GHz ELRS Receiver Specifications:
- Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- RF Frequency: 2.4GHz
- Antenna: enameled copper wire 31mm length
- Telemetry output Power: <12dBm
- Default firmware version: ExpressLRS V3.0.1
- Firmware target: HappyModel EP1/2 2400 RX
- Could update firmware via ExpressLRS configurator
Package Contents:
- 1x HappyModel CrazyF405HD ELRS 1-2S AIO FC built-in UART ELRS receiver and 12A BLHELI_S ESC
