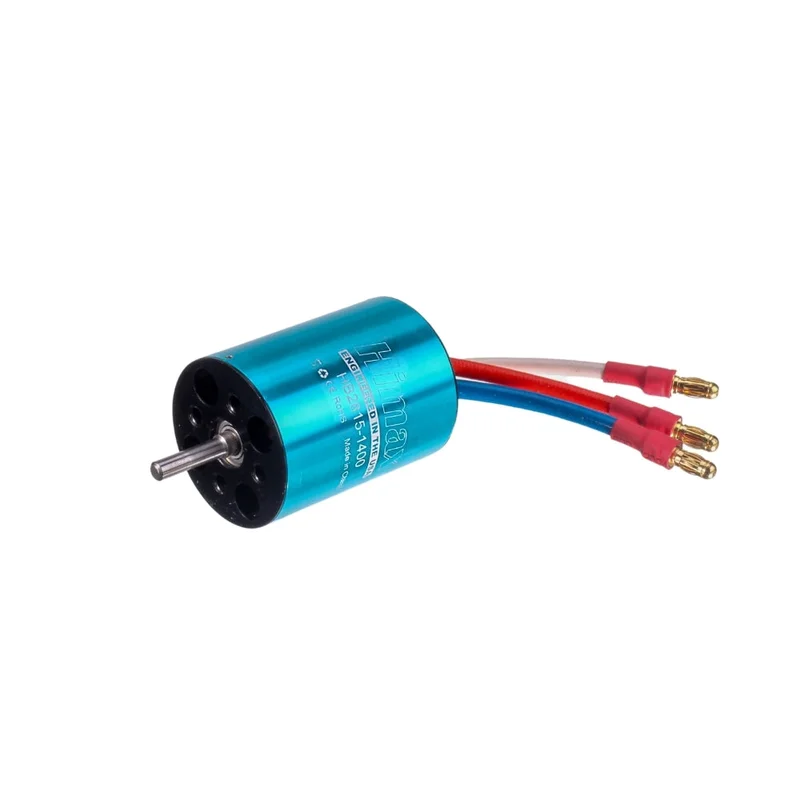

Name: Himax HB2815 Inrunner Brushless Motors
SKU: 8170245292270
Availability: InStock

Description

HB2815 Brushless 275 Watts
• Designed as direct replacement for Speed 400/480 can motors – same diameter & mounting pattern, • Direct replacement for Mega16/15 and Aveox27/13, • Higher power & higher efficiency than 400/480 motor means longer run time and more fun, • Slotted high torque design, can be used as direct drive or with gearbox – fits MPI ACC387 offset gear box, HB2815 – These 275 watt motors are for small models weighing 24-32 oz for 3-D flight, up to 40 oz for aerobatic flight and up to 50 oz for leisure flight. Manual • Gas equivalent – .061 – .15
Part No.	Dia mm	Length mm	Weight g	Shaft Dia	Prop Size*	ESC Rating	Kv	Rm	Io
HB2815-2000 Learn more	28	38	86	.125″	5×4-7×4	25	2000	.057	1.2
HB2815-3000 Learn more	28	38	86	.125″	4×4-6×4	30	3000	.035	1.8
HB2815-4000 Learn more	28	38	86	.125″	4×3-5×4	40	4000	.016	4.2
*Caution – Prop size is highly dependent on battery choice. Check the manual for full information. Always monitor current when choosing prop.

Additional information

mycustom	Size#HB2815-1400, HB2815-2000, HB2815-3000, HB2815-4000
