Description

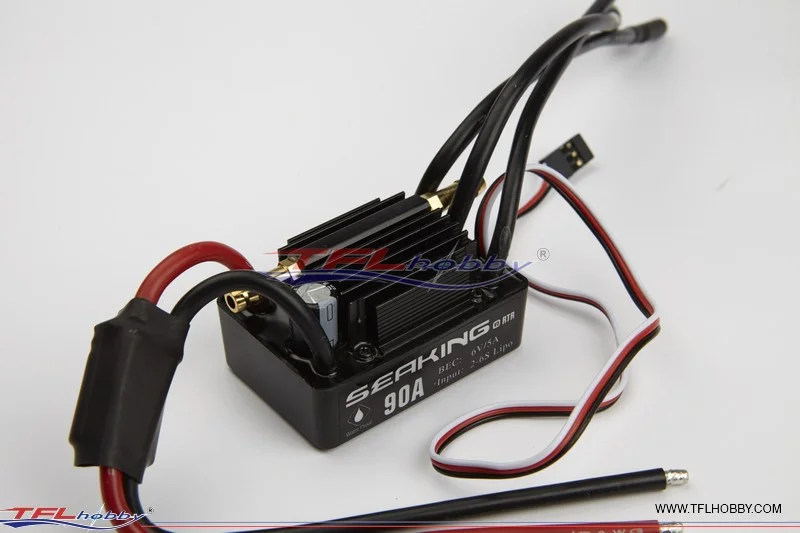

SeaKing Series: SeaKing-90A Marine Brushless ESC
Designed for ship models, using water-cooled heat dissipation system, excellent waterproof performance!
1 Product specifications
1.1 Output capacity: continuous current 90A, instantaneous current 180A;
1.2 Power input: 6-18 Ni-MH/Ni-Cd battery packs or 2-6 Lithium battery packs;
1.3 BEC output: 6V/3A (switching power supply mode);
1.4 Support motor type: sensorless and brushless;
1.5 Outer diameter of water cooling pipe: 5mm;
1.6 Volume: 94mm (length) * 33mm (width) * 18mm (height);
1.7 Weight: 103g (including lead weight);
2 Product features
2.1 Brand new program algorithm designed for ship model, with excellent starting effect, acceleration performance and throttle linearity;
2.2 It has excellent adaptability to sudden load changes caused by hull bumps and jumps during sailing;
2.3 The use of high-quality materials and water cooling system to ensure good heat dissipation of the device, so that the ESC has a strong current withstand capability;
2.4 There are two modes of competition (one-way) and forward and reverse (two-way);
2.5 Multiple protection functions: low voltage protection (supporting lithium batteries and nickel-cadmium/nickel-metal hydride batteries), temperature protection, and throttle out-of-control protection;
2.6 It has 8 timing modes, which can be well matched with various automotive brushless and brushless motors;
2.7 Waterproof and dustproof design, effectively extending the service life;
2.8 Support easy-to-use parameter programming card (optional)
