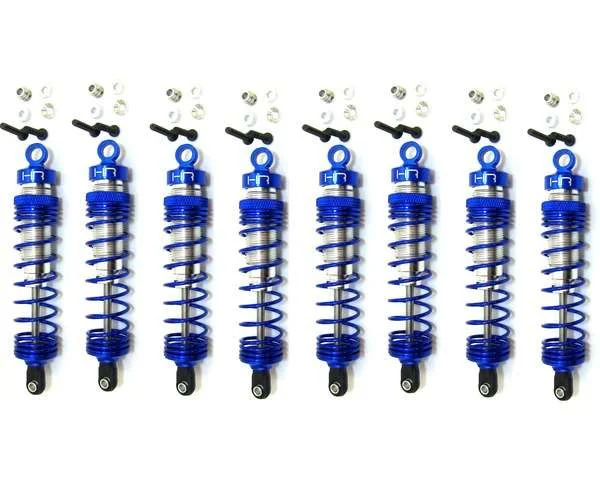

Hot Racing Aluminum 100mm HD Big Bore Shock Set for T-Maxx & E-Maxx

Description

This is the Hot Racing Aluminum 100mm HD Big Bore Shock Set with eight shocks for the Traxxas T-Maxx 2.5, T-Maxx 3.3, E-Maxx 16.8V, and E-Maxx Brushless trucks.These can also be used with other shocks requiring 100mm shocks.

FEATURES:
– CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
– “Big Bore” threaded shock bodies
– CNC machined 11mm Delrin pistons
– 3.5mm stainless steel shock shafts
– Silver and blue anodized aluminum components
– Vented shock caps with bladder seals for consistent rebound dampening
– Threaded shock collars with o-rings to prevent unwanted movement
– Composite plastic lower shock ends with aluminum balls
– Fully assembled, just add shock oil and bleed

YOU WILL RECEIVE:
– Eight (8) assembled shocks
– Eight (8) M3x20mm flat head cap screws
– Eight (8) M3x18mm button head cap screws
– Eight (8) 3mm countersunk washers
– Eight (8) 5.9 hollow balls
– Eight (8) 1.5mm thick spacers
– Eight (8) 3mm thick spacers

REQUIREMENTS:
– Silicone shock oil of modeler’s choice and bleeding per the typical bladder shock bleeding procedure

SPECIFICATIONS:
– Replaces Traxxas Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X
– Extended length: 100mm
– Compressed length: 70mm
– Overall length: 110mm
– Spring: 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long

COMMENTS:
– Use spacers as need for installation
– Can be used with optional Hot Racing springs: SLF63FS261 (progressive), SLF63MR268 (linear), SLF63RS286 (progressive)
– See Hot Racing TD8100X06 for an eight (8) pack of 100mm shocks
– See Hot Racing TD90X06 and TD90PC06 for 90mm shocks
– Accepts optional Hot Racing silicone shock boot RDP34201
– See Hot Racing RTDS100X for replacement shock shafts and pistons
– See Hot Racing RTD910BN for replacement shock ends
– See Hot Racing RTD910RB for a rebuilt kit
– See Hot Racing RTD1010X for replacement bladders and lower seals
