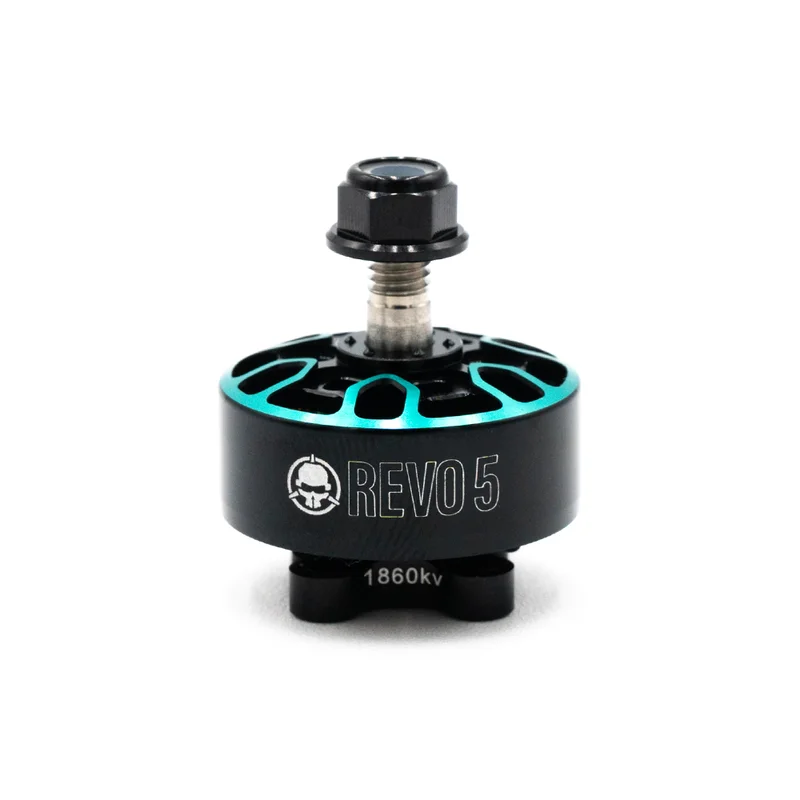

Hypetrain REVO 5 2207 1860KV Motor

Description

The REVO 5 series offers top-tier performance, making it an excellent option for both 5″ freestyle and racing builds. It can withstand high levels of stress while maintaining smooth operation.

Also available in 2450KV for 4S builds!

Features

• 7075-T6 Aluminum Alloy Housing
• Titanium Alloy Shaft
• N52H Curved Magnets
• 0.15 High Performance Kawasaki Stator
• Japanese ISC Bearings

Specifications

• KV: 1860
• Input Voltage: 6S
• Max current: 46A
• Idle Current: 0.9A
• Internal Resistance: 65mΩ
• Motor Dimensions: φ27.3×19.1mm
• Stator Dimensions: 2207
• Shaft Diameter: φ4mm
• Mounting Pattern: 4xM3 16x16mm
• Wire Dimensions: 20AWGx150mm
• Weight: 34g

Includes

• 1x Hypetrain REVO 5 2207 1860KV Motor
