Description

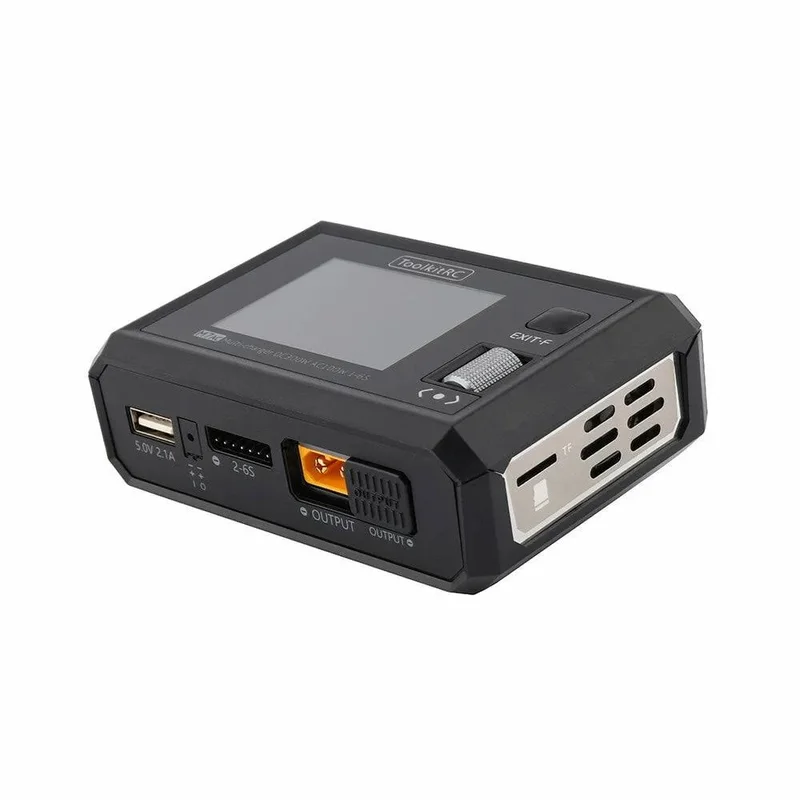

The M7AC features both an integrated 100W AC power supply and DC power input, XT30 & XT60 charging outputs, customizable voice alerts and much more. The M7AC also has all the multifunctionality you expect from a ToolkitRC charger, including multimeter, signal measurement, signal generation and adjustable power supply output.
Features
- Integrated AC power supply
- Bright 2.4″ 320×240 IPS wide angle display
- Long life scroll wheel sensor
- New simplified interface
- 10W USB output
- SD Slot
- Small size, many functions:
- Balance charge
- Electrical measurement
- Signal source
- Drone charge
- Signal testing
Specifications
Charger
- Input Voltage:
- AC 100-240V MAX 100W 1.5A
- DC 7.0-28.0V @MAX 20A
- Battery Type: Lipo LiHV LiFe Lion LTO@1-6S, NiMh @1-16S Pb @1-10S
- Balance current: 800mA @ 4.2V
- Charger power: 300W @MAX 15A
- Discharge power: 300W @MAX 15A Recycle mode, 15W@3A Normal mode
- USB: [email protected] or Upgrade
Measurement
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-6S
- Internal resistance: 0.1-99mR @1-6S
- ESC: 300W@15A
Output
- PWM: 500-2500us @20-1000Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power supply: 1.0-28.0V @1.0-15A mode:CC+CV
- OverCurrent Cutoff time: <5ms
Includes
- 1x M7AC 300W 1-6S AC/DC Smart Charger
