mRID Remote ID Module – Rotor Riot Edition

Description

Phoenix UAS mRID is a remote ID module approved by the FAA. It is purposely made to be compact, lightweight, and user-friendly, specifically for FPV enthusiasts and the wider UAS community.

Requires a user supplied M10 GPS

Features

• FAA compliant
• Works with any M10 Ublox based GPS
• You can power from a 5V connection on your flight controller, a 1S battery, or through a USB connection.
• GPS and compass data can be passed to Betaflight and INav. Testing pending for Ardupilot.
• USB can be used to cold start the gps, saving your battery for flight time
• Integrated blue tooth antenna, no extra antenna to mount.
• The tiny 24mm x 14mm x 8mm size provides you with many mounting options
• Tucks inside many frames
• Add a 3d printed case and safely mount on the exterior
• Easily moved from UAS to UAS
• Easily converted into a self powered standalone module with > 30-minute runtime on a 100mAh 1s LiPo battery.
• Four status LED’s to indicate power, GPS Lock, telemetry passthough and failure

Specifications

• Transmission method: Bluetooth 5LE / BT4
• Power: 3.3-5v, 1s battery, USB
• Power consumption: < 40mA
• Dimensions: 24mm x 14mm x 8mm
• Weight: 2.2 grams
• LED’s: Power: Blue-on, GPS: Green lock/ready to fly, Telemetry: blinking green GPS sending to flight controller
• Requires a user supplied M10 GPS

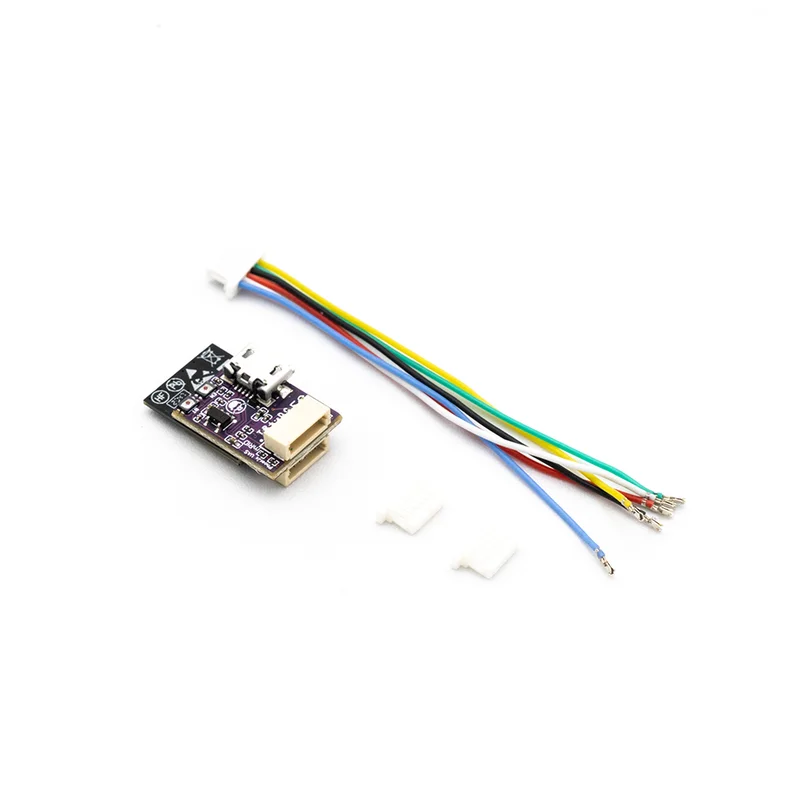

Includes

• 1x mRID Remote ID Module – Rotor Riot Edition
• 1x 6 pin SH 1.0 cable with terminated ends
• 2x SH 1.0 connectors
