Description

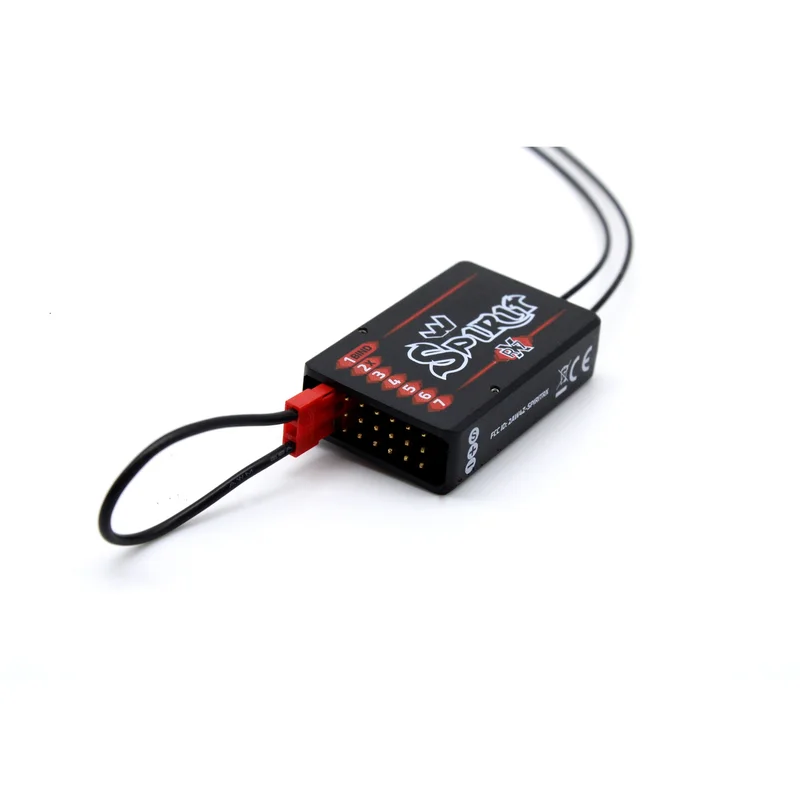

Spirit RX7 is brand new Receiver for R/C aircrafts featuring top-notch technology in one extraordinary packageǃ
It can be connected to any model, including all Spirit units offering full Integration with Wave Ecosystem.
Receiver
- Spirit Wave 2.4Ghz full-range telemetry receiver
- Full featured 30+ channels available
- Blazing fast 333 Hz transmission
- High interference immunity
- BEC Voltage measurement
Features
- Gold plated PCB with Pb-Free soldering
- Gold plated Pin Headers
- 7x Servo Outputs
- Reverse Polarity Protection
- 2x 20cm Full-range antennas
- Max. output power: 30 dBm
- Receiver sensitivity: -106 dBm
- Suitable for all Spirit units
- Full Integration with Spirit Wave + Spirit units
- Support for Spirit RX, PWM, S-BUS, SRXL protocols
- Easily Updateable
Specifications
- Material: ABS Chasis
- Dimension: 39.4×25.6×10.7mm, weight: 11g
- Power supply: 3 – 15V
- Operating temperature: -10°C to 50°C
Package Content
Package Dimension
- Paper Box:120 x 120 x 30 mm
Compatibility
- Spirit 1
- Spirit Pro
- Spirit Aero
- Spirit 2
- Spirit RS
- Spirit GT
- Spirit GTR
- Spirit W1 (as Backup)
- Third-party FBL controllers
- Flybar Helicopters
- Planes
- Copters
- Boats
- Cars
Warranty
|
