Description

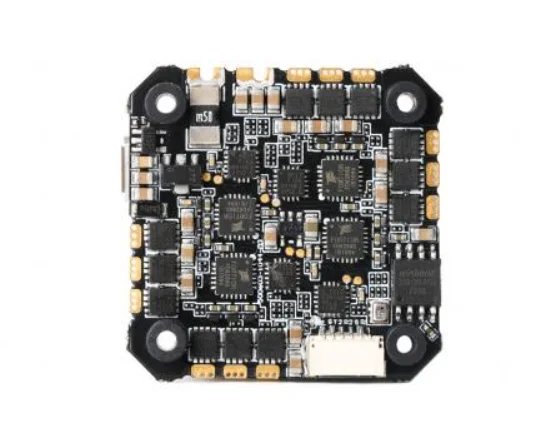

T-MOTOR F7 45A AIO FLIGHT CONTROLLER – 25.5X25.5.

The T-Motor F7 45A All-In-One (AIO) is the ideal electronic speed controller for advanced RC pilots. Boasting 45 amp maximum continuous current, it provides superior power and performance for modern multi-rotors. This easy-to-install unit also includes a redundant power supply for added protection.

WIRING DIAGRAM:

SPECIFICATIONS:

• MCU：STM32F722
• Gyro：MPU6500
• Barometer：BMP280
• OSD：AT7456&HD
• Black box：16MB
• BEC：5V/1.5A
• Input voltage：3-6S
• Continuous current：45A
• Peak current：50A
• ESC firmware：BLSBluejay
• Size: 39*39mm
• Mounting hole:25.5*25.5/φ3mm
• Supports HD and Analog
• Recommendation: P1804/F2004/F2203.5

PACKAGE INCLUDES:

• 1 x T-Motor F7 45A AIO Flight Controller – 25.5×25.5
