Description
About The MF2211VP Polymer Manual Pitch Folding Propeller

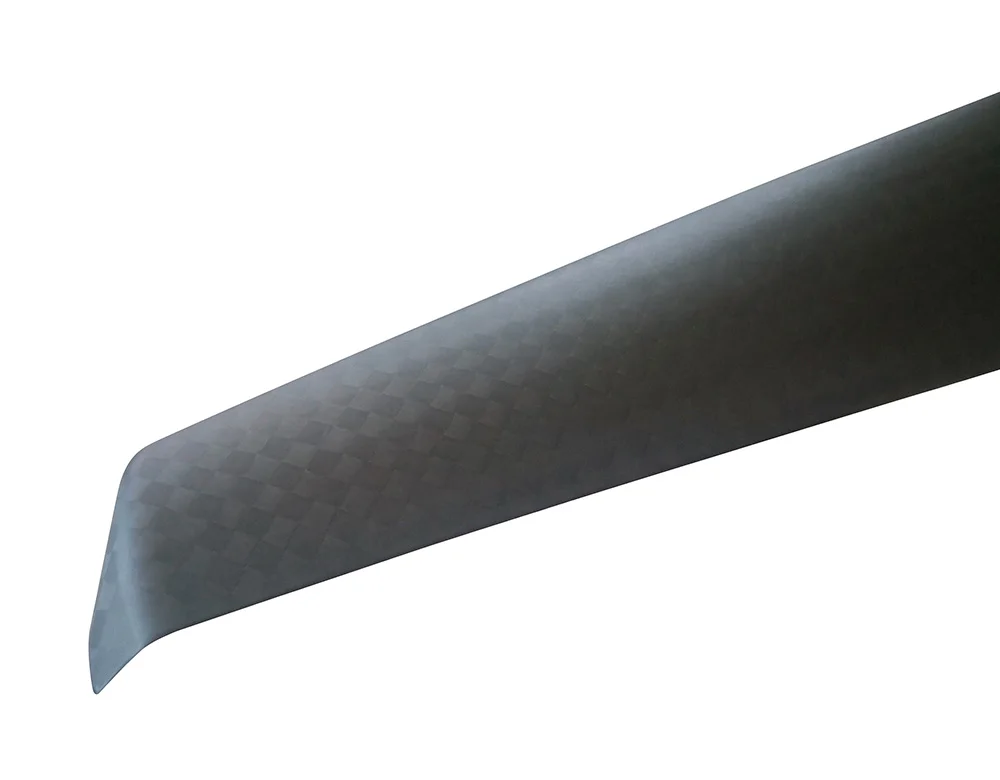

The MF2211VP is a cutting-edge 22.4*8 inch polymer manual pitch folding propeller expertly designed by T-MOTOR for multi-rotor and VTOL drones. In conciseness to traditional propeller systems, the MF2211VP is engineered to address complex and variable flight conditions and diverse power requirements. Its design facilitates manual pitch adjustment with a straightforward replacement of the positioning block, eliminating the need for additional tools. This feature enhances the efficiency of professional model development in dynamic, multi-scenario environments.
MF2211VP’s Highlights:
– Its aerodynamic design enhances flight efficiency under high-speed and high-altitude conditions.
– The tip design, with its large swept back tip and downward curved winglets, optimizes tip vortex distribution, reducing energy consumption and vibration. This makes it ideal for professional users.
– The commonly used pulling force range is from 0.5 to 2.2 kilograms.
– The maximum pull force, when paired with the T-MOTOR MN4012 KV340 motor and FLAME 60A 12S V2.0 ESC, is 2.8kg at maximum throttle (with a 7.5° positioning block), and the recommended maximum pull force is 3kg.
Packing List Includes:
Package size: 300*106*45mm
MF2211 center positioning block (+2.5°)-CCW*1
MF2211 Center Positioning Block (+2.5°)-CW*1
MF2211 Center Positioning Block (-2.5°)-CCW*1
MF2211 Center Positioning Block (-2.5°)-CW*1
MF2211 Center Positioning Block (+5°)-CCW*1
MF2211 center locating block (+5°)-CW*1
M3*10mm cup head socket head cap screws*4
Matching Guide:
T-MOTOR MN605 KV170 Motor
T-MOTOR FLAME 60A 12S V2.0 ESC
T-MOTOR FLAME 180A 12S V2.0 ESC
