Description

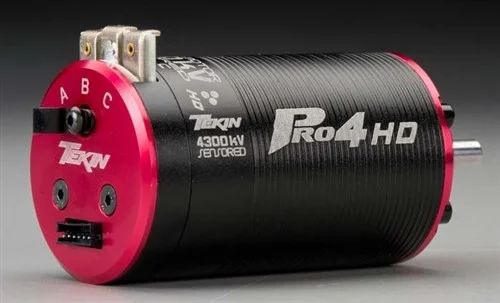

This is the Tekin Pro4 HD Sensored Brushless 1.5D 4300Kv 550 Motor with 5mm Shaft for 1/10 Scale 4×4 Short Course Trucks. Tekin’s PRO4 HD Motor raises the bar in offroad power. The PRO4 HD’s longer 550 can and 4-pole design provide performance gains across the board and off the charts when compared to standard 1:10th scale motors. The PRO4 HD has the torque and power to level the competition.
Features
- Accomodates 2S LiPo power systems
- 4 pole, 12 slot hi-torque 550 motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- Neodymium sintered magnets
- High purity copper windings for greatest efficiency
- Rebuildable
- Dual plug sensor wire harness for use with all sensored systems
- High RPM ABEC 5 oversize ball bearings
Includes: Tekin Pro 4 HD 4300kV Motor with Sensor Wire
Specifications
Motor Length: 2.5″ (62.5mm)
Motor Diameter: 1.4″ (35.8mm)
Shaft Dimensions: .60 x .196″ (15.3 x 5mm)
Weight: 7.8oz (221g)
Bearing Dimensions: Front: 5x14x5mm / Rear: 5x11x5
Rotor Diameter: 0.73″ (18.5mm)
Requires: ESC
