Description
TEKTT2000
Key Features
- Easily Access Programming, Anywhere, Anytime
- QuickTune One-Touch Programming
- HotWire Compatible
- D2: Dual Drive Mode Technology
- On-Board Temperature Indicator
- HDAC: High Density Copper FET Boards
- Solder Posts for Easy Wiring
- Heatsink and Fan w/ Auto-on-Temp Sensing
- One-Touch Radio Calibration
- HV BEC
- DATA Logging
- Water Proof

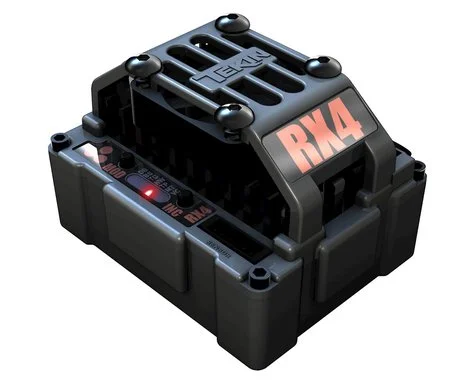

Tekin’s RX4 Brushless Sensored ESC is designed to power your Chassis past any obstacle. With massive power handling capabilities, a water proof design and all the customization features you’d expect from a Tekin ESC; the RX4 has you covered no matter the situation. Not only reliable, this ESC has a host of built in features like a High Voltage BEC, Drag Brake, Data logging and the ability to run either Brushed or Brushless motors. The RX4 defines versatility.
The RX4 Housing is a thick-walled, reinforced Hardbox design able to withstand the elements and rough environments that come with true Offroad adventuring.
Rocks, Dirt, Snow, Sand, Mud, Trail and Track; the RX4 is no-limits RC fun.
Designed to run Tekin ROC 412 and ROC 412HD motors
2s Lipo up to 4400kV3s Lipo up to 3100kV4s Lipo up to 2300kV
PROGRAMMABLE FEATURES:
DB – Drag Brake (13 steps)BS – Brake / Reverse Strength (13 steps)LM – Torque Limiter (7 steps)NW – Neutral Width (13 steps)TP – Timing Profiles 5 Presets – 2 CustomMT – Brushless Modes: Fwd/Brk, Fwd/Rev, Rev DelayBrushed: Fwd/Brk, Fwd/Rev, Fwd/Rev DelayVC – Voltage Cutoffs: 2S, 3S, 4S and CustomExtensive Tuning via Tekin HotWire (sold separately)Custom Throttle ProfilesAdjustable Throttle and Brake MinimumsAdjustable Throttle and Brake Frequencies
Specs
Speed Control Brushless – Sensor
Drive Type Forward/Brake/Reverse
Product Height 35.5mm (1.4 in)
Product Length 40.6mm (1.6 in)
Product Weight 2.65oz (75.5g)
Product Width 50.8mm (2.0 in)
Programmable Yes
Adjustable Timing Yes
