Description

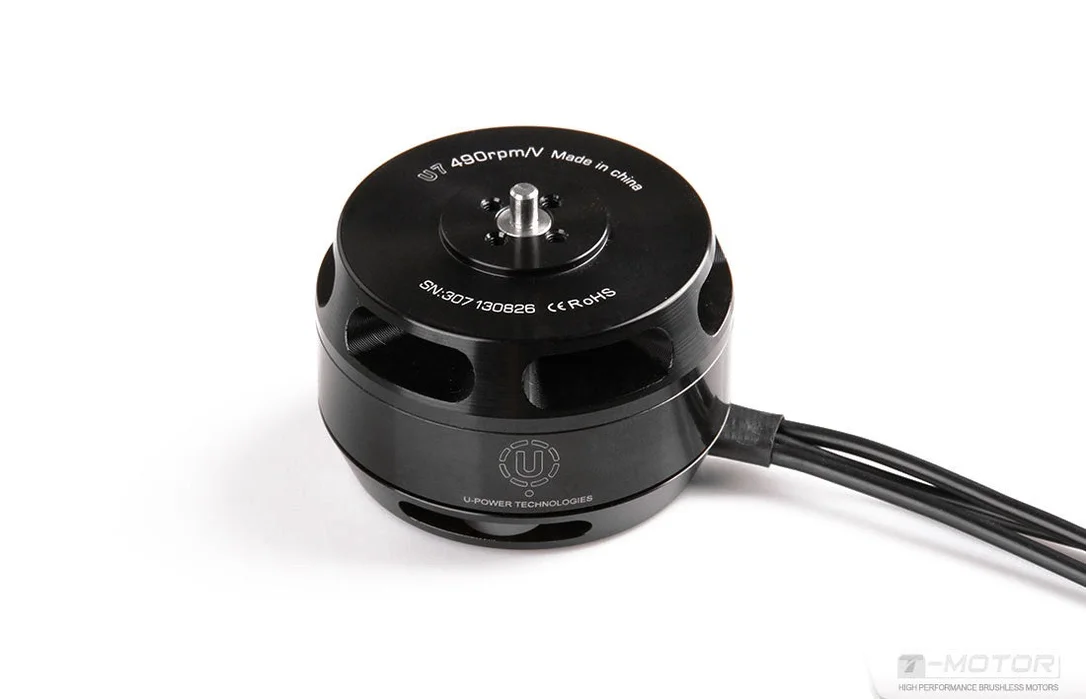

The U7 V2.0 series motor by Tiger Motors is the ultimate heavy-lift multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible.
This motor is designed for large scale multi-rotor platforms looking to lift DSLR sized gear. A 17″-18″ prop is recommended to fly with this motor supporting 6s battery voltage.
Specifications
- KV………………………………………………………………………………………………….280
- Configuration…………………………………………………………………………12N14P
- Shaft Diameter…………………………………………………………………………….6mm
- Motor Dimension(Dia.*Len)………………………………………..Φ60.7×39.5mm
- Weight(g)……………………………………………………………………………………..317g
- idle current(10)@10v(A)………………………………………………………………..0.5A
- No.of Cells(Lipo)…………………………………………………………………………..3-8S
- Max Continuous current(A)180S…………………………………………………….35A
- Max Continuous Power(W)180S……………………………………………….800W
- Max. efficiency current…………………………………………………….(10-21A)>83%
- internal resistance……………………………………………………………………….33mΩ
