Description
TORQ TCM-1022 for TRX-4M/4MT with FREE CNC Servo Horn needs:
1.

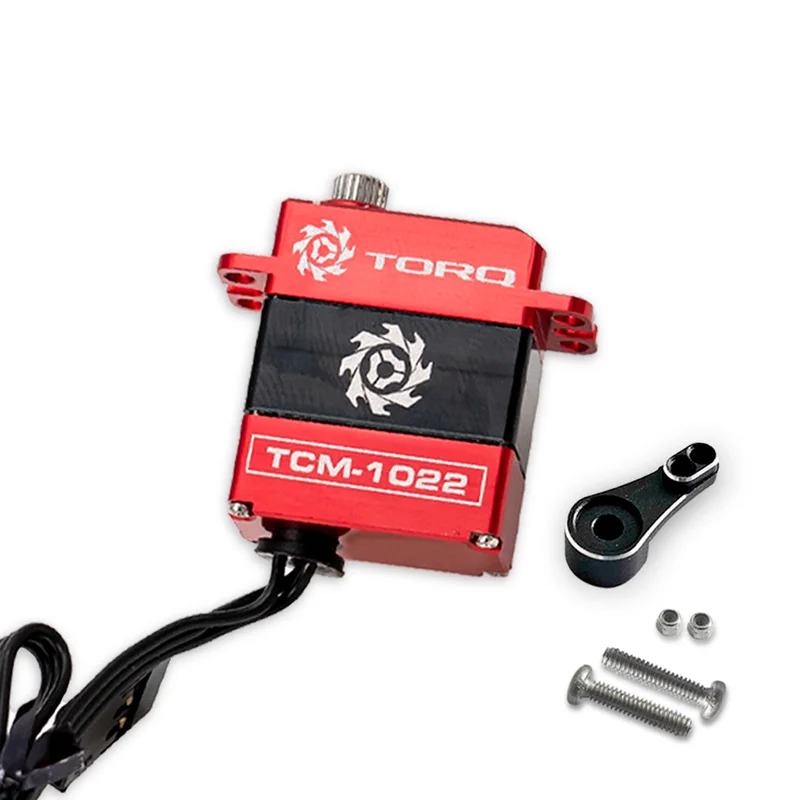

TORQ TCM-1022 Premium High Torque Servo – RED
Features
– High Torque Output: Delivers powerful performance for small-scale crawlers.
– Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
– Simplified Installation: Easy to mount due to its unique design.
– Enhanced Clearance: Designed for ultimate clearance around the servo.
Specifications
– Dead Bandwidth: 2μs
– Working Frequency: 1520μs / 330Hz
– Operating Voltage: 6.0V – 8.4V
– Motor Type: Coreless Motor
– Operating Speed:
· At 6.0V: 0.1 sec/60°
· At 8.4V: 0.07 sec/60°
– Stall Torque:
· At 6.0V: 8.2 kg-cm (113 oz-in)
· At 8.4V: 11.5 kg-cm (160 oz-in)
– Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
– Weight: 20.0 g (0.7 oz)
– Connector Wire Length: JR 170 mm (6.7 inches)
– Output Gear Spline: 25T
2.
TSP-1001 Servo horn for TRX-4M & TRX-4MT:
– M2x10 buttom head: 2
– M2 locknut: 2
– Servo horn cnc THN-107: 1
